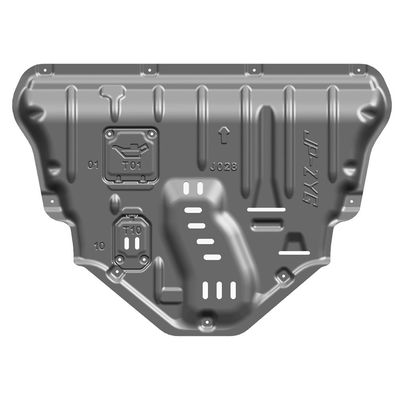

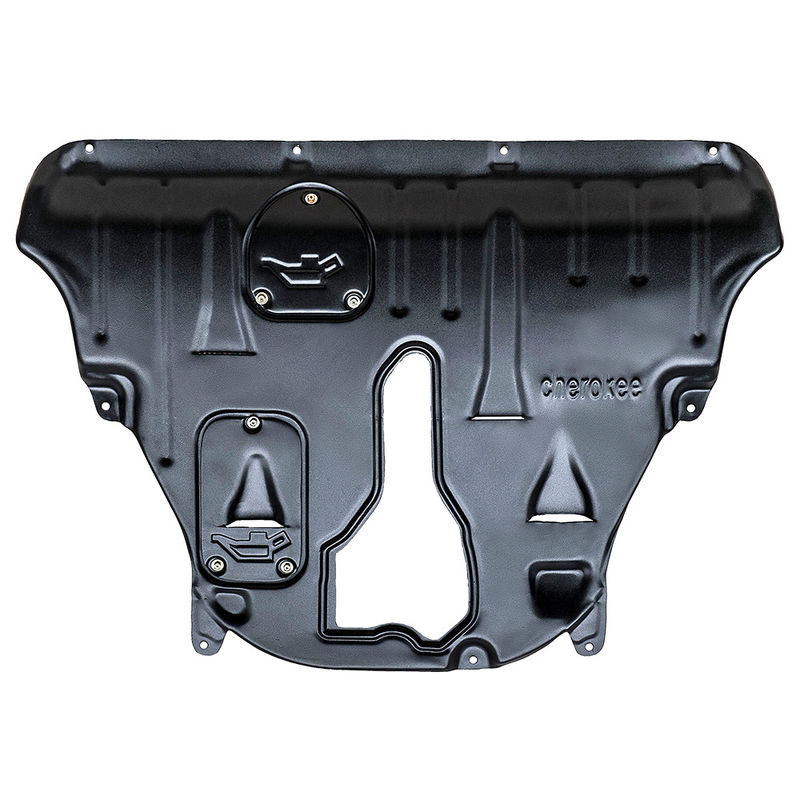

Year 2015-2016 Jeep Cherokee Skid Plate Engine Guard Transmission Protection Armour

Product Name

Jeep Cherokee Skid Plates / Underbody Protection

Material

Aluminum Alloy / cold rolled steel

Thickness

Aluminum Alloy (4.0mm );  cold rolled steel (2.5mm) ;

Size

Perfect fit for Jeep Cherokee

Package:

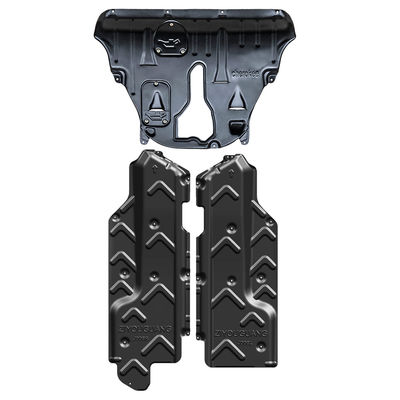

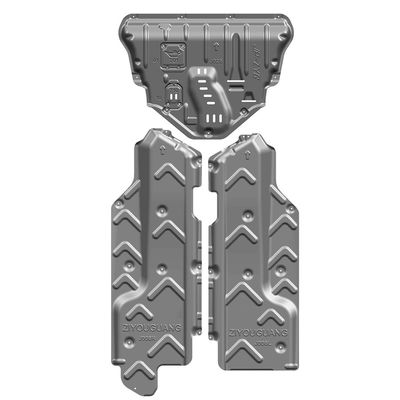

Carton box; 2pcs/ set:  engine and transmission skid plate, underbody skid plate

Surface Finishing

Powder coating

Color

sliver/gray/black/orange/customized

Features

1. Premium Material: 5-series aluminum alloy and cold-rolled steel are optional; Thickness of 2.5mm/3.5mm/ 4.0mm/5.0mm/8.0mm are optional;
Powder coated black/ gray/silver/orange are optional.
2. 3D Scanning + Integrated Stamping Process: Precise hole position, the error with original holes is within 0.1mm. Complete fit to the vehicle chassis. And gives greater coverage.
3. Deep Rib Structure Design: After a collision, the force in a single point will be transmitted through the ribs and spread to the entire guard plate to increase strength.
4. Buffer Design: 3-5mm space between skid plate and girder. When encounter severe impact, the skid plates provide maximum protection by buffer and deformation stress relese.
5. Recessed Mounting: Bolts are protected and easy to remove for vehicle serving.
6. Vents Design: Open holes in key positions, not only the water and sand leakage holes, but also a aerodynamic cooling system, faster heat dissipation.
7. Access Cover: Easy to remove for vehicle serving.
8. Plug-in Design: Without screws to avoid damage to the bottom of the battery after a collision.
9. Tesla Battery Skid Plate：Diamond-shaped convex design, a combination of utility patent and appearance patent.
10. Complete Special Install Fittings: Patented mounting brackets, T-shaped screws, self-locking buckle and rubber pad. For stable installation and prevent abnormal noise.
